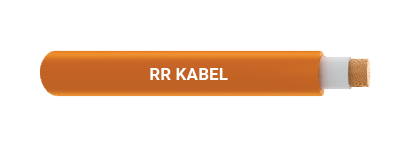

WELDEX-DI (Double Insulated)
Application
Double insulated cable, for welding machines provides higher current carrying capacity. Used to conduct secondary voltage in secondary side connection to MMA welding power sources.
Technical Data
Voltage Rating : 450V a.c.r.m.s.
Test Voltage : 3000V
Temperature Range : -30°C to + 70°C
Minimum Bending Radius : 5 x cable diameter
Cable Construction
Super fine strands of annealed bare copper as per EN 60228, Cl. 6
Elastomeric PVC composite covering.
* Also available with TPE composite covering 105°C
Properties
The heavy duty welding cable is resistant to flame, oil, abrasions, tar and grease.
Suitable for use in open air, in dry as well as damp interiors.
The high degree of flexibility does not form knots on the cable which could lead to internal break of conductors.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the insulation material required: 0 – TPE, 1 – Elastomeric PVC
| Part Number | Nominal Cross-Sectional Area (Sq. mm) | Max. Strand Diameter (mm) | Max. DC Conductor Resistance (Ω/km) | Total Radial Thickness of Covering (mm) | Maximum Cable Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 1207y0100010 | 10 | 0.30 | 1.91 | 3.2 | 10.0 | 180 |
| 1207y0100016 | 16 | 0.30 | 1.21 | 3.2 | 11.5 | 250 |
| 1207y0100025 | 25 | 0.30 | 0.78 | 3.2 | 13.0 | 350 |
| 1207y0100035 | 35 | 0.30 | 0.554 | 3.2 | 14.5 | 460 |
| 1207y0100050 | 50 | 0.30 | 0.386 | 3.5 | 17.0 | 650 |
| 1207y0100070 | 70 | 0.30 | 0.272 | 3.8 | 19.0 | 880 |
| 1207y0100095 | 95 | 0.30 | 0.206 | 4.2 | 21.5 | 1170 |
| 1207y0100120 | 120 | 0.30 | 0.161 | 4.5 | 24.0 | 1430 |
| 1207y0100150 | 150 | 0.30 | 0.129 | 4.8 | 26.0 | 1720 |
