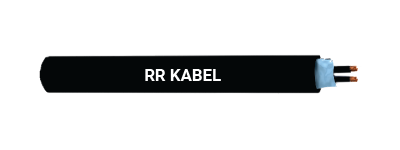

RE-2X(St)Y – SINGLE & MULTI-PAIR
Standard
Adapted to EN 50288-7
Cable Construction
Conductor: Conductor: Annealed copper wires according to BS EN 60228
Insulation: Crosslinked polyethylene XLPE
Pairs: Twisted
Identification Pairs: Black & white, continuously numbered on white core (1, 2, 3…) for multi-element
Collective Screen: Aluminium / PETP tape over tinned copper drain wire
Cable Sheath: Polyvinyl chloride PVC
Colour: Black. Blue for intrinsically safe system
Technical Data
Flame Propagation : EN 60332-1-2
Operating Temperature Range : -30°C to +90°C
Bending Radius : 7.5 x cable diameter
Operating Voltage : 500V
*Also available in 300V variant on request.
Marking : RR KABEL RE-2X(St)Y nxmxa 500V EN50288-7 CE + 0001m
n - No. of pairs
m - Pairs
a - Cross sectional area
Electrical Properties
| Conductor Cross Section (Sq.mm) | Class of Conductor | No. of Strands/Max. Strand Diameter (mm) | Max. DC Conductor Resistance* at 20°C (Ω/km) | Max.L/R Ratio (μH/Ω) | Min. Insulation Resistance (GΩ x cm) | Max. Mutual Capacitance (nF/km) | Max.Inductance (mH/km) | Test Voltage Vrms (Core-Core) | Test Voltage Vrms (Core-Screen) |
|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 2 | 7/0.3 | 36.0 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 0.5 | 5 | 16/0.2 | 39.0 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 0.75 | 2 | 7/0.37 | 24.5 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 0.75 | 5 | 24/0.2 | 26.0 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 1 | 2 | 7/0.43 | 18.1 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 1 | 5 | 32/0.2 | 19.5 | 25 | 5000 | 150 | 1 | 2000 | 2000 |
| 1.5 | 2 | 7/0.53 | 12.1 | 40 | 5000 | 150 | 1 | 2000 | 2000 |
| 2.5 | 2 | 7/0.67 | 7.41 | 60 | 5000 | 150 | 1 | 2000 | 2000 |
Cable Design Parameters
| Part Number | No. of Pairs and Nom.Cross Sectional Area (Sq. mm) | Min. InsulationThickness (mm) | Nominal SheathThickness (mm) | Approx. Cable Diameter (mm) | Approx. Cable Weight (kg/km) | |
|---|---|---|---|---|---|---|
| Class 5 Conductor | 070350121050 | 1 x 2 x 0.5 | 0.44 | 1.0 | 6.4 | 45.1 |
| 070350221050 | 2 x 2 x 0.5 | 0.44 | 1.0 | 7.7 | 67.9 | |
| 070350321050 | 3 x 2 x 0.5 | 0.44 | 1.1 | 9.0 | 91.3 | |
| 070350421050 | 4 x 2 x 0.5 | 0.44 | 1.1 | 10.1 | 113.8 | |
| 070350521050 | 5 x 2 x 0.5 | 0.44 | 1.2 | 11.1 | 136.0 | |
| 070350821050 | 8 x 2 x 0.5 | 0.44 | 1.3 | 13.6 | 200.1 | |
| 070351021050 | 10 x 2 x 0.5 | 0.44 | 1.3 | 15.0 | 242.3 | |
| 070351221050 | 12 x 2 x 0.5 | 0.44 | 1.4 | 16.2 | 283.9 | |
| 070351621050 | 16 x 2 x 0.5 | 0.44 | 1.4 | 18.4 | 365.3 | |
| 070352021050 | 20 x 2 x 0.5 | 0.44 | 1.5 | 20.4 | 446.6 | |
| 070352421050 | 24 x 2 x 0.5 | 0.44 | 1.6 | 22.2 | 527.1 | |
| 070350121075 | 1 x 2 x 0.75 | 0.44 | 1.0 | 6.8 | 53.1 | |
| 070350221075 | 2 x 2 x 0.75 | 0.44 | 1.1 | 8.3 | 82.2 | |
| 070350321075 | 3 x 2 x 0.75 | 0.44 | 1.1 | 9.7 | 112.0 | |
| 070350421075 | 4 x 2 x 0.75 | 0.44 | 1.2 | 10.9 | 141.3 | |
| 070350521075 | 5 x 2 x 0.75 | 0.44 | 1.2 | 12.0 | 169.8 | |
| 070350821075 | 8 x 2 x 0.75 | 0.44 | 1.3 | 14.7 | 253.1 | |
| 070351021075 | 10 x 2 x 0.75 | 0.44 | 1.4 | 16.2 | 308.6 | |
| 070351221075 | 12 x 2 x 0.75 | 0.44 | 1.4 | 17.6 | 362.6 | |
| 070351621075 | 16 x 2 x 0.75 | 0.44 | 1.5 | 20.0 | 469.5 | |
| 070352021075 | 20 x 2 x 0.75 | 0.44 | 1.6 | 22.2 | 576.7 | |
| 070352421075 | 24 x 2 x 0.75 | 0.44 | 1.6 | 24.1 | 681.7 | |
| 070350120001 | 1 x 2 x 1 | 0.44 | 1.0 | 7.1 | 60.1 | |
| 070350220001 | 2 x 2 x 1 | 0.44 | 1.1 | 8.7 | 95.5 | |
| 070350320001 | 3 x 2 x 1 | 0.44 | 1.1 | 10.2 | 131.2 | |
| 070350420001 | 4 x 2 x 1 | 0.44 | 1.2 | 11.5 | 166.3 | |
| 070350520001 | 5 x 2 x 1 | 0.44 | 1.2 | 12.6 | 200.6 | |
| 070350820001 | 8 x 2 x 1 | 0.44 | 1.3 | 15.5 | 302.0 | |
| 070351020001 | 10 x 2 x 1 | 0.44 | 1.4 | 17.1 | 369.2 | |
| 070351220001 | 12 x 2 x 1 | 0.44 | 1.4 | 18.6 | 434.7 | |
| 070351620001 | 16 x 2 x 1 | 0.44 | 1.5 | 21.2 | 565.4 | |
| 070352020001 | 20 x 2 x 1 | 0.44 | 1.6 | 23.5 | 697.1 | |
| 070352420001 | 24 x 2 x 1 | 0.44 | 1.7 | 25.5 | 825.0 | |
| Class 2 Conductor | 070320121050 | 1 x 2 x 0.5 | 0.44 | 1.0 | 6.4 | 44.9 |
| 070320221050 | 2 x 2 x 0.5 | 0.44 | 1.0 | 7.7 | 67.6 | |
| 070320321050 | 3 x 2 x 0.5 | 0.44 | 1.1 | 9.0 | 90.8 | |
| 070320421050 | 4 x 2 x 0.5 | 0.44 | 1.1 | 10.1 | 113.2 | |
| 070320521050 | 5 x 2 x 0.5 | 0.44 | 1.2 | 11.1 | 135.3 | |
| 070320821050 | 8 x 2 x 0.5 | 0.44 | 1.3 | 13.6 | 199.0 | |
| 070321021050 | 10 x 2 x 0.5 | 0.44 | 1.3 | 15.0 | 240.9 | |
| 070321221050 | 12 x 2 x 0.5 | 0.44 | 1.4 | 16.2 | 282.3 | |
| 070321621050 | 16 x 2 x 0.5 | 0.44 | 1.4 | 18.4 | 363.2 | |
| 070322021050 | 20 x 2 x 0.5 | 0.44 | 1.5 | 20.4 | 443.9 | |
| 070322421050 | 24 x 2 x 0.5 | 0.44 | 1.6 | 22.2 | 523.9 | |
| 070320121075 | 1 x 2 x 0.75 | 0.44 | 1.0 | 6.8 | 53.0 | |
| 070320221075 | 2 x 2 x 0.75 | 0.44 | 1.1 | 8.3 | 82.2 | |
| 070320321075 | 3 x 2 x 0.75 | 0.44 | 1.1 | 9.7 | 112.4 | |
| 070320421075 | 4 x 2 x 0.75 | 0.44 | 1.2 | 10.9 | 141.2 | |
| 070320521075 | 5 x 2 x 0.75 | 0.44 | 1.2 | 12.0 | 169.7 | |
| 070320821075 | 8 x 2 x 0.75 | 0.44 | 1.3 | 14.7 | 253.0 | |
| 070321021075 | 10 x 2 x 0.75 | 0.44 | 1.4 | 16.3 | 308.4 | |
| 070321221075 | 12 x 2 x 0.75 | 0.44 | 1.4 | 17.6 | 362.4 | |
| 070321621075 | 16 x 2 x 0.75 | 0.44 | 1.5 | 20.1 | 469.2 | |
| 070322021075 | 20 x 2 x 0.75 | 0.44 | 1.6 | 22.2 | 576.3 | |
| 070322421075 | 24 x 2 x 0.75 | 0.44 | 1.6 | 24.2 | 681.2 | |
| 070320120001 | 1 x 2 x 1 | 0.44 | 1.0 | 7.2 | 61.1 | |
| 070320220001 | 2 x 2 x 1 | 0.44 | 1.1 | 8.8 | 97.2 | |
| 070320320001 | 3 x 2 x 1 | 0.44 | 1.1 | 10.4 | 134.2 | |
| 070320420001 | 4 x 2 x 1 | 0.44 | 1.2 | 11.7 | 170.1 | |
| 070320520001 | 5 x 2 x 1 | 0.44 | 1.2 | 12.9 | 205.2 | |
| 070320820001 | 8 x 2 x 1 | 0.44 | 1.3 | 15.8 | 308.9 | |
| 070321020001 | 10 x 2 x 1 | 0.44 | 1.4 | 17.4 | 377.7 | |
| 070321220001 | 12 x 2 x 1 | 0.44 | 1.5 | 19.0 | 445.5 | |
| 070321620001 | 16 x 2 x 1 | 0.44 | 1.6 | 21.6 | 579.4 | |
| 070322020001 | 20 x 2 x 1 | 0.44 | 1.6 | 23.9 | 712.9 | |
| 070322420001 | 24 x 2 x 1 | 0.44 | 1.7 | 26.0 | 845.0 | |
| 070320121105 | 1 x 2 x 1.5 | 0.44 | 1.0 | 7.9 | 76.8 | |
| 070320221105 | 2 x 2 x 1.5 | 0.44 | 1.1 | 9.7 | 126.3 | |
| 070320321105 | 3 x 2 x 1.5 | 0.44 | 1.2 | 11.5 | 176.3 | |
| 070320421105 | 4 x 2 x 1.5 | 0.44 | 1.2 | 13.0 | 225.7 | |
| 070320521105 | 5 x 2 x 1.5 | 0.44 | 1.3 | 14.3 | 274.3 | |
| 070320821105 | 8 x 2 x 1.5 | 0.44 | 1.4 | 17.7 | 417.0 | |
| 070321021105 | 10 x 2 x 1.5 | 0.44 | 1.5 | 19.5 | 512.4 | |
| 070321221105 | 12 x 2 x 1.5 | 0.44 | 1.5 | 21.2 | 605.6 | |
| 070321621105 | 16 x 2 x 1.5 | 0.44 | 1.6 | 24.2 | 791.0 | |
| 070322021105 | 20 x 2 x 1.5 | 0.44 | 1.7 | 26.8 | 978.1 | |
| 070322421105 | 24 x 2 x 1.5 | 0.44 | 1.8 | 29.2 | 1162.0 | |
| 070320121205 | 1 x 2 x 2.5 | 0.53 | 1.1 | 9.3 | 106.4 | |
| 070320221205 | 2 x 2 x 2.5 | 0.53 | 1.2 | 11.5 | 180.6 | |
| 070320321205 | 3 x 2 x 2.5 | 0.53 | 1.3 | 13.6 | 256.2 | |
| 070320421205 | 4 x 2 x 2.5 | 0.53 | 1.3 | 15.5 | 330.7 | |
| 070320521205 | 5 x 2 x 2.5 | 0.53 | 1.4 | 17.1 | 404.3 | |
| 070320821205 | 8 x 2 x 2.5 | 0.53 | 1.5 | 21.1 | 621.6 | |
| 070321021205 | 10 x 2 x 2.5 | 0.53 | 1.6 | 23.4 | 766.7 | |
| 070321221205 | 12 x 2 x 2.5 | 0.53 | 1.7 | 25.5 | 909.9 | |
| 070321621205 | 16 x 2 x 2.5 | 0.53 | 1.8 | 29.1 | 1193.1 | |
| 070322021205 | 20 x 2 x 2.5 | 0.53 | 1.9 | 32.3 | 1479.8 | |
| 070322421205 | 24 x 2 x 2.5 | 0.53 | 2.1 | 35.2 | 1762.0 |
