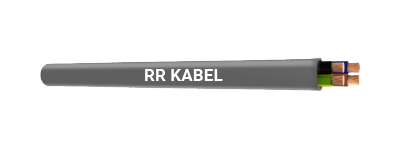

H03 / H05V2V2H2-F & H03 / H05V2V2-F
Application
For use in connections of household appliances and internal wiring purposes with high ambient temperatures and humid spaces.
Standard
BS EN 50525-2-11.
Technical Data
Nominal Voltage : 300 / 500V (H05V2V2H2-F / H05V2V2-F); 300 / 300V (H03V2V2H2-F / H03V2V2-F)
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +90°C / Fixed Installation -30°C to +90°C / Fixed Installation 5 x cable ø
Minimum Bending Radius : Flexing 7.5 x cable ø; Fixed installation 4 x cable ø
Test Voltage : 4000V
Breakdown Voltage : Min. 8000V
Cable Construction
Bare copper, fine wire conductors, as per EN 60228 Cl.5.
PVC core insulation TI3, to EN 50363-3.
Harmonised core colour to HD 308 (Refer Appendix Table No. 1-1).
Cores stranded in layers with optimal lay-length.
PVC outer sheath TM3, to EN 50363-4.1
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters
Please complete the part numbers for these cables by adding the suffix (in place of ‘z’) for the sheath colour required, 1 – black (RAL 9005), 2 – grey (RAL 7001), 3 – white (RAL 9010).
| Part Number | No. of Cores and Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | |
|---|---|---|---|
| H03V2V2-F | 03050101001z | 2 x 0.5 | 5.1 |
| 03050102001z | 2 x 0.75 | 5.5 | |
| 03050103001z | 3 x 0.5 | 5.3 | |
| 03050104001z | 3 G 0.5 | 5.3 | |
| 03050105001z | 3 x 0.75 | 5.7 | |
| 03050106001z | 3 G 0.75 | 5.7 | |
| 03050107001z | 4 x 0.5 | 5.8 | |
| 03050108001z | 4 G 0.5 | 5.8 | |
| 03050109001z | 4 x 0.75 | 6.3 | |
| 03050110001z | 4 G 0.75 | 6.3 | |
| H05V2V2H2-F | 03050111001z | 2 x 0.5 | 5.1 X 3.2 |
| 03050112001z | 2 x 0.75 | 5.5 X 3.4 | |
| 03050113001z | 2 x 0.75 | 6.3 X 4.0 | |
| 03050114001z | 2 x 1.0 | 6.6 X 4.1 | |
| 03050115001z | 2 x 1.5 | 7.7 x 4.7 | |
| H05V2V2-F | 03050116001z | 2 x 0.75 | 6.2 |
| 03050117001z | 2 x 1.0 | 6.5 | |
| 03050118001z | 2 x 1.5 | 7.5 | |
| 03050119001z | 2 x 2.5 | 9.1 | |
| 03050120001z | 2 x 4 | 10.3 | |
| 03050121001z | 3 x 0.75 | 6.6 | |
| 03050122001z | 3 G 0.75 | 6.6 | |
| 03050123001z | 3 x 1.0 | 6.9 | |
| 03050124001z | 3 G 1.0 | 6.9 | |
| 03050125001z | 3 x 1.5 | 8.1 | |
| 03050126001z | 3 G 1.5 | 8.1 | |
| 03050127001z | 3 x 2.5 | 9.9 | |
| 03050128001z | 3 G 2.5 | 9.9 | |
| 03050129001z | 3 x 4 | 11.2 | |
| 03050130001z | 3 G 4 | 11.2 | |
| 03050131001z | 4 x 0.75 | 7.2 | |
| 03050132001z | 4 G 0.75 | 7.2 | |
| 03050133001z | 4 x 1.0 | 7.7 | |
| 03050134001z | 4 G 1.0 | 7.7 | |
| 03050135001z | 4 x 1.5 | 9.0 | |
| 03050136001z | 4 G 1.5 | 9.0 | |
| 03050137001z | 4 x 2.5 | 10.8 | |
| 03050138001z | 4 G 2.5 | 10.8 | |
| 03050139001z | 4 x 4 | 12.2 | |
| 03050140001z | 4 G 4 | 12.2 | |
| 03050141001z | 5 x 0.75 | 8.0 | |
| 03050142001z | 5 G 0.75 | 8.0 | |
| 03050143001z | 5 x 1.0 | 8.3 | |
| 03050144001z | 5 G 1.0 | 8.3 | |
| 03050145001z | 5 x 1.5 | 10.0 | |
| 03050146001z | 5 G 1.5 | 10.0 | |
| 03050147001z | 5 x 2.5 | 12.0 | |
| 03050148001z | 5 G 2.5 | 12.0 | |
| 03050149001z | 5 x 4 | 13.7 | |
| 03050150001z | 5 G 4 | 13.7 |
Note : *G = With green / yellow earth core , X = Without green / yellow earth core
