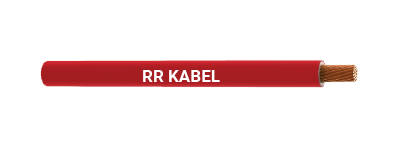

UL 1275
Application
PVC-insulated heavy wall lead wire, for use as hook - up wire and for internal wiring on refrigeration equipments.
Standard
UL - Std. 758, CSA C 22.2 No.210
Technical Data
Nominal Voltage : 600V
Test Voltage (Spark Test)
AWG 18 to 16 : 6kV
≥ AWG 8: 7.5kV
Temperature Range : -20°C to 105°CB
Temperature at Conductor : Max. UL and CSA : +105°C
Bending Radius : Fixed installation 5 x cable ø
Cable Construction
Annealed plain or tinned stranded copper conductor.
PVC - core insulation Type TW, Recognized Component QMTT2 heat and damp resistant.
Properties
Conditionally resistant to oils.
PVC self - extinguishing and flame retardant, test method to UL VW-1 and CSA FT 1 / FT 2
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the insulation colour required: 01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey, 13 – light blue.
| Part Number | AWG No. | No. of Cores & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 06050101xx30 | 18 | 1 x 0.82 | 4.3 | 8.3 | 27.4 |
| 06050102xx30 | 16 | 1 x 1.32 | 4.6 | 13.5 | 35.1 |
| 06050103xx30 | 14 | 1 x 2.08 | 5.0 | 20.4 | 44.9 |
| 06050104xx30 | 12 | 1 x 3.31 | 5.5 | 32.5 | 60.6 |
| 06050105xx30 | 10 | 1 x 5.26 | 6.1 | 51.7 | 84.5 |
