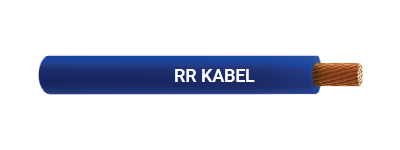

AV
Application
These are standard wall auto cables for ideal use in automotives by harness manufacturers.
Standard
In accordance to JASO D 611, JASO D 618, JIS C 3406
Temperature Range (3000 Hrs)
-40°C to +80°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to D 609-90, bare conductor construction according to JASO D 611 PVC insulation, material accordingly to JASO D 611
Packing
Available in 100 mtrs. Longer length available in spools.
Cable Design Parameters
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Min. Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.5 |
7 |
0.32 |
1.0 |
32.7 |
0.6 |
2.4 |
-0.2 |
10.0 |
|
0.85 |
11 |
0.32 |
1.2 |
20.8 |
0.6 |
2.6 |
-0.2 |
13.0 |
|
1.25 |
16 |
0.32 |
1.5 |
14.3 |
0.6 |
2.9 |
-0.2 |
17.0 |
|
2 |
26 |
0.32 |
1.9 |
8.81 |
0.6 |
3.4 |
-0.3 |
26.0 |
|
3 |
41 |
0.32 |
2.4 |
5.59 |
0.7 |
4.1 |
-0.3 |
40.0 |
|
5 |
65 |
0.32 |
3.0 |
3.52 |
0.8 |
4.9 |
-0.3 |
62.0 |
|
8 |
50 |
0.45 |
3.7 |
2.32 |
0.9 |
5.8 |
-0.3 |
92.0 |
|
10 |
63 |
0.45 |
4.5 |
1.84 |
1.0 |
6.9 |
-0.4 |
120.0 |
|
15 |
84 |
0.45 |
4.8 |
1.38 |
1.1 |
7.4 |
-0.4 |
160.0 |
|
0.5f* |
20 |
0.18 |
1.0 |
36.7 |
0.6 |
2.4 |
-0.2 |
9.0 |
|
0.85f* |
30 |
0.18 |
1.2 |
24.4 |
0.6 |
2.6 |
-0.2 |
12.0 |
|
1.25f* |
50 |
0.18 |
1.5 |
14.7 |
0.6 |
2.9 |
-0.2 |
18.0 |
|
2f* |
37 |
0.26 |
1.8 |
9.5 |
0.6 |
3.4 |
-0.4 |
25.0 |
|
3f* |
61 |
0.26 |
2.4 |
5.76 |
0.7 |
4.1 |
-0.3 |
40.0 |
