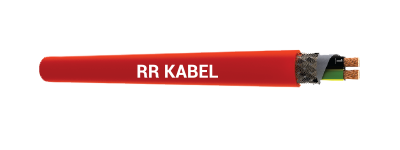

SERVO FD 75781-CY
Application
Connecting between the frequency convertor and the motor for power circuits in machine cabling. In dry damp or wet interiors with normal mechanical stress conditions For outdoor usage within the permitted range of temperature.
Standard
Based on EN 50525-2-51
Technical Data
Nominal Voltage : UO / U 600 / 1000V
Insulation Resistance : Min. 20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
Test Voltage : Core/core: 4000V. Core/screen: 2000V
Cable Construction
Bare copper, fine wire conductors according to EN 60228 Cl. 6,
PP(polypropylene) core insulation.
Cores are twisted together with shorter lay length.
Non woven wrapping.
Tinned copper braiding.
Special PVC TM5 outer sheath to EN 50363-4.1
PVC orange (RAL 2003).
Properties
Flame retardant according to EN 60332-1-2
Extensively Oil resistant
PP insulation ensures low mutual capacitance, lower dielectric loss, low screen interference currents.
Low adhesive surface
SERVO FD 75781-CY is also available with UV resistance property as SERVO FD 75781-CY UV.
Kindly add 'UV' after the part no. for UV resistant cable.
UV resistant to ASTM G 154.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘y’) for the insulation material required: 1 – PVC 70°C, 9 – TPE
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 041000411105 | 4G 1.5 | 9.8 | 74.3 | 130 |
| 041000411205 | 4G 2.5 | 11.9 | 113.8 | 205 |
| 041000410004 | 4G 4 | 13.5 | 169.7 | 286 |
| 041000410010 | 4G 10 | 19.7 | 428.0 | 641 |
| 041000410016 | 4G 16 | 23.9 | 661.4 | 931 |
| 041000410035 | 4G 35 | 33.3 | 1386.2 | 1808 |
| 041000410050 | 4G 50 | 38.3 | 1937.2 | 2476 |
Note : * G = With green / yellow earth core
