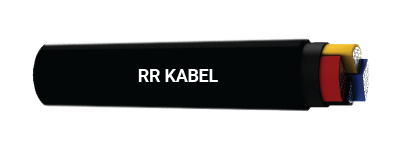

A2XY / 2XY-3.5 CORE
Cable Construction
1.1 kV (A.C) & 1.5 kV (D.C ) to Earth
3.5 Cores AL / CU Conductor, XLPE Insulated, Unarmoured Cables as per IS:7098 Part-1. Conductor : AL / CU Stranded compact shaped conductor as per Cl. 2, IS:8130 Insulation : Crosslinked polyethylene (XLPE)
Phase Core Color : Red, yellow, blue
Neutral Core Color : Black
Insulation : Crosslinked polyethylene (XLPE)
Core Color : Red, yellow, blue
Inner Sheath : PVC / PVC tape as per IS 7098 (P - 1)
Outer Sheath : PVC Type ST - 2 as per IS 5831 (Option : FR Type / FRLS Type)
Cable Color : Black (Options : Any other color as per requirement)
Cable Design Parameters
While ordering, in addition to the part number the following details shall also be advised:
Conductor Type (Aluminium or Copper) and class of conductor (Cl. 1 or 2).
Sheath Type – PVC Type ST – 2 (FR or FRLS).
| Part Number | Nominal Cross Sectional Area(Sq. mm) | Nominal Thickness of Insulation(mm) | Minimum Thickness of Inner Sheath(mm) | Nominal Thicknessof Outer Sheath(mm) | Approx.Overall Diameter(mm) | Approx. Net Wt. of Cable (kg/km) | |
|---|---|---|---|---|---|---|---|
| AL Cable A2XY | CU Cable 2XY | ||||||
| 111601010211 | 3×25+16 | 0.9/0.7 | 0.3 | 2.0 | 22 | 575 | 1125 |
| 111601020211 | 3×35+16 | 0.9/0.7 | 0.3 | 2.0 | 24 | 685 | 1425 |
| 111601030211 | 3×50+25 | 1.0/0.9 | 0.3 | 2.0 | 27 | 880 | 1980 |
| 111601040211 | 3×70+35 | 1.1/0.9 | 0.4 | 2.2 | 31 | 1185 | 2680 |
| 111601050211 | 3×95+50 | 1.1/1.0 | 0.4 | 2.2 | 34 | 1480 | 3580 |
| 111601060211 | 3×120+70 | 1.2/1.1 | 0.4 | 2.2 | 38 | 1880 | 4480 |
| 111601070211 | 3×150+70 | 1.4/1.1 | 0.5 | 2.4 | 43 | 2275 | 5485 |
| 111601080211 | 3×185+95 | 1.6/1.1 | 0.5 | 2.6 | 46 | 2770 | 6785 |
| 111601090211 | 3×240+120 | 1.7/1.2 | 0.6 | 2.8 | 52 | 3580 | 8675 |
| 111601100211 | 3×300+150 | 1.8/1.4 | 0.6 | 3.0 | 57 | 4380 | 10780 |
| 111601110211 | 3×400+185 | 2.0/1.6 | 0.7 | 3.4 | 65 | 5580 | 13980 |
| 111601120211 | 3×500+240 | 2.2/1.7 | 0.7 | 3.6 | 73 | 6980 | 17425 |
| 111601130211 | 3×630+300 | 2.4/1.8 | 0.7 | 4.0 | 82 | 8885 | 21970 |
