LED Slim Panels - Elegant Series

LED MAKE BRIGHT TO THE BRIGHTEST

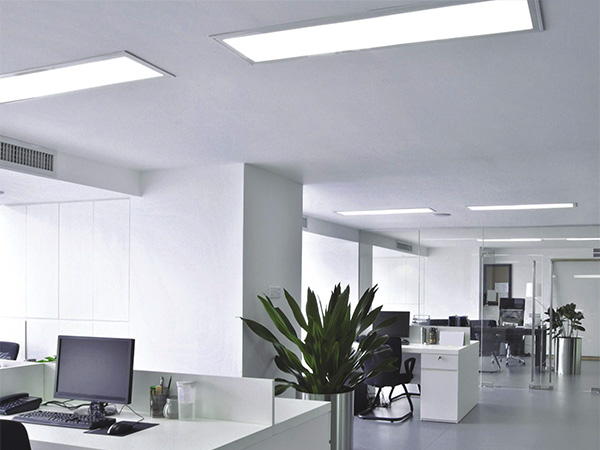

When we need proper lighting but without making the source very visible, slim panels does the job properly.

Light is more but the Luminaries are small and sleek. A wide variety of designs of slim panels with different colour temperature gives all architects and interior decorators to make the whole design elegant and effective.

For convenience both concealed and surface type designs are available in a wide range power and sizes.

Product Code LNPS03 LNPS06 LNPS09 LNPS12 LNPS15
Electrical Data
Input Voltage Range AC 100-300 V
Power factor ≥0.95
Power Consumption 3 w±5% 6 w±5% 9 w±5% 12 w±5% 15 w±5%
Surge Voltage 2.5kv
Photometric Data
Rated Luminous Flux 300 Lm 600 Lm 900 Lm 1200 Lm 1500 Lm
LED Light Source SMD
Color Rendering Index (CRI) ≥80
Beam Angle 120°
Luminous Efficiency 95-100 Lm/W
Color Temperature (CCT) 3000K (WW), 4000k (NWH), 6000K (WH)
Working Temperature 0°c to + 50°c
Luminaire Data
Dimension L:90mm, W:90mm, H:20mm L:120mm,W:120mm, H:20mm L:145mm,W:145mm, H:20mm L:173mm,W:173mm, H:20mm L:193mm,W:193mm, H:20mm
Ceiling Cutout L:73mm,W:73mm L:102mm,W:102mm L:125mm,W:125mm L:153mm,W:153mm L:175mm,W:175mm
Rated Life 40000 Hours
IP Rating IP40
Luminaire Body & Finish Aluminium body with PC Diffuser
Product Code LNPS18 LNPS24 LNPS30 LPS40 LPS42 LPS48
Electrical Data
Input Voltage Range AC 100-300 V
Power factor ≥0.95
Power Consumption 18 w±5% 24 w±5% 30 w±5% 40 w±5% 40 w±5% 48 w±5%
Surge Voltage 2.5kv
Photometric Data
Rated Luminous Flux 1800 Lm 2400 Lm 3000 Lm 4000 Lm 4000 Lm 4800 Lm
LED Light Source SMD
Color Rendering Index (CRI) ≥80
Beam Angle 120°
System Efficiency 95-100Lm/W
Color Temperature (CCT) 3000K (WW), 4000k (NWH), 6000K (WH) 6000K (WH)
Working Temperature 0°c to + 50°c
Luminaire Data
Dimension L:224, W:224mm, H: 20mm L:301, W:301mm, H: 20mm L:301, W:301mm, H: 20mm L:595, W:595mm, H: 9mm L:1195,W:150mm, H: 8mm L:1195,W:295mm, H: 8mm
Ceiling Cutout L:203, W:203mm L:272, W:272mm L:272, W:272mm L:570,W:570mm L:1170,W:140mm L:1170,W:270mm
Rated Life 40000 Hours
IP Rating IP40
Luminaire Body & Finish Aluminium body with PC Diffuser
