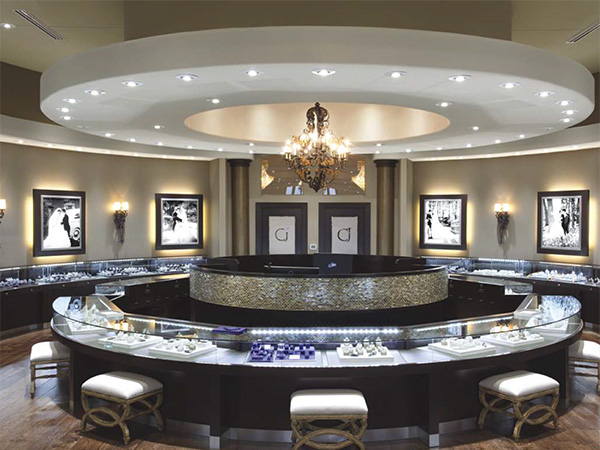

Conventional Spot lights and drop lights consumes lot of energy and produces heat which acts against air conditioning. LED saves huge amount of energy in these range of products and provided maximum efficiency due to the unidirectional property.
With high flexibility of manufacturing, LED can generate lights in any type, color and moods. We have complete range of lighting suitable for any type of applications and wattage.
| Product Code | LSCR01 | LSCS01 |
|---|---|---|
| Electrical Data | ||
| Input Voltage Range | AC 100-300 V | |
| Power factor | ≥0.95 | |
| Power Consumption | 1w ±0.5% | |
| Photometric Data | ||
| Rated Luminous Flux | 90 Lm | |
| LED Light Source | SMD | |
| Color Rendering Index (CRI) | ≥80 | |
| Beam Angle | 40° | |
| Luminous Efficiency | 90 Lm/W | |
| Color Temperature (CCT) | WH, WW, Red, Green, Blue | |
| Working Temperature | 0°c to + 50°c | |
| Luminaire Data | ||
| Dimension | Ø: 31mm, H: 21mm | L: 31, W:31, H: 21mm |
| Ceiling Cutout | Ø:27mm | |
| Rated Life | 40000 Hours | |
| IP Rating | IP20 | |
| Luminaire Body & Finish | Die-cast Aluminium Body with Reflector | |
| Product Code | LSCOBS01 | LSCOBR01 | LSCS03 | LSCR03 |
|---|---|---|---|---|
| Electrical Data | ||||
| Input Voltage Range | AC 100-300 V | |||
| Power factor | ≥0.95 | |||
| Power Consumption | 1w ±0.5% | 1w ±0.5% | 3w ±0.5% | 3w ±0.5% |
| Photometric Data | ||||
| Rated Luminous Flux | 90 Lm | |||
| LED Light Source | COB | |||
| Color Rendering Index (CRI) | ≥80 | |||
| Beam Angle | 40° | |||
| Luminous Efficiency | 90 Lm/W | |||
| Color Temperature (CCT) | 3000K (WW), 4000K (NWH), 6000K (WH) | 3000K (WW), 6000K (WH) | ||
| Working Temperature | 0°c to + 50°c | |||
| Luminaire Data | ||||
| Dimension | L:30, W:30, H:25mm | Ø:30mm, H:25mm | L:50, W:50, H:25mm | Ø:50mm,H:25mm |
| Ceiling Cutout | Ø:25mm | Ø:25mm | Ø:35mm | Ø:35mm |
| Rated Life | 40000 Hours | |||
| IP Rating | IP20 | |||
| Luminaire Body & Finish | Die-cast Aluminium Body with Reflector | |||
