LED FLOODING WITH LIGHT

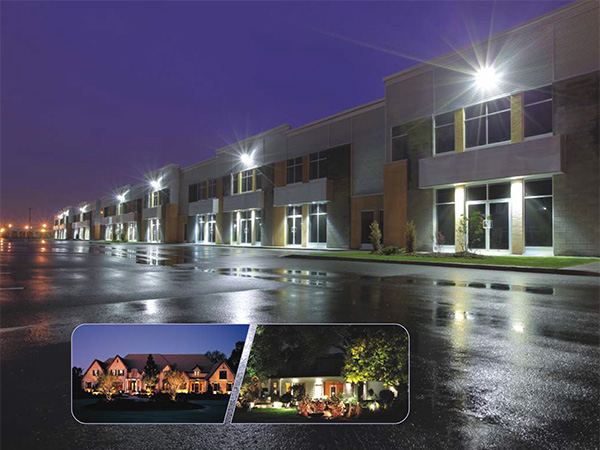

Large area lighting is always a demanding work and high consumption of energy. Stadiums, Showrooms, Lawns and many more open areas require extensive lighting.

LED Flood Lights are so focussed and with instant start are best suitable for large area lighting. With many colours and colour temperature, it is also suitable for different applications like Sports, celebrations and functions. Compared to conventional lighting more than energy conservation, long life and least maintenance are considered as very good features for lighting. Higher ratings of power levels also keep the number of units required at low levels.

Product Code LIPSRR12 LIPSRR15 LIPSRR18
Electrical Data
Input Voltage Range AC 100-300 V
Power factor ≥0.95
Power Consumption 12 w±5% 15 w±5% 18 w±5%
Surge Voltage 2.5kv
Photometric Data
Rated Luminous Flux 1140Lm 1425Lm 1710Lm
LED Light Source SMD
Color Rendering Index (CRI) ≥80
Beam Angle 120°
Luminous Efficacy 90-95 Lm/W
Color Temperature (CCT) 3000K (WW), 4000K (NWH), 6500K (WH)
Working Temperature 0°c to + 50°c
Luminaire Data
Dimension Ø: 170mm, H: 29mm Ø: 170mm, H: 29mm Ø: 225mm, H: 29mm
Rated Life 40000 Hours
IP Rating IP40
Luminaire Body & Finish ABS Plastic with PC Diffuser
Product Code LIPSRS12 LIPSRS15 LIPSRS18
Electrical Data
Input Voltage Range AC 100-300 V
Power factor ≥0.95
Power Consumption 12 w±5% 15 w±5% 18 w±5%
Surge Voltage 2.5kv
Photometric Data
Rated Luminous Flux 1140Lm 1425Lm 1710Lm
LED Light Source SMD
Color Rendering Index (CRI) ≥80
Beam Angle 120°
Luminous Efficacy 90-95 Lm/W
Color Temperature (CCT) 3000K (WW), 4000K (NWH), 6500K (WH)
Working Temperature 0°c to + 50°c
Luminaire Data
Dimension L: 170, W: 170, H: 29 L: 170, W: 170, H: 29 L: 225, W: 225, H: 29mm
Rated Life 40000 Hours
IP Rating IP40
Luminaire Body & Finish ABS Plastic with PC Diffuser
