LED REVOLUTIONISING INDUSTRIAL LIGHTING

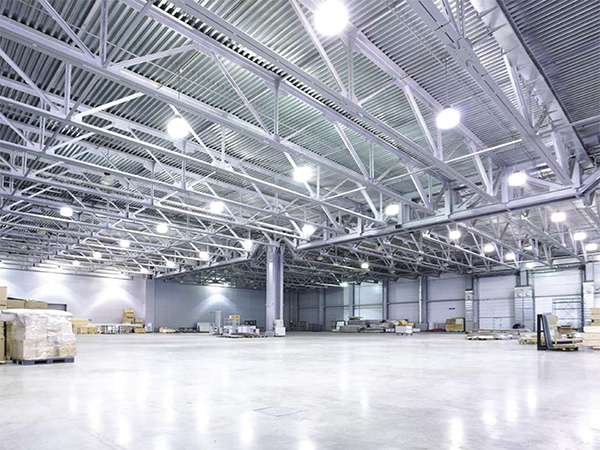

Industrial lighting is always a challenge due to high ceiling heights and large areas of lighting.

LED provides very compact High Bay solutions for all the industry needs. Different industries require varied type of lighting and also precision in visibility. Wide range of LED High Bay is solution for many industrial applications. Long life and easy maintenance provides lot of cost saving to industries other than energy saving on reduced power consumption.

We have design teams providing back-up solutions for complete industrial lighting.

Product Code	LOHY50	LOHY100	LOHY150	LOHY200
Electrical Data
Input Voltage Range	AC 100-300 V
Power factor	≥0.95
Power Consumption	50w ± 5%	100w ± 5%	150w ± 5%	200w ± 5%
Surge Voltage	6KV
Photometric Data
Rated Luminous Flux	6000 Lm	12000 Lm	18000 Lm	24000 Lm
LED Light Source	SMD
Color Rendering Index (CRI)	≥80
Beam Angle	120°
Luminous Efficiency	90 Lm/W	120 - 130 Lm/W
Color Temperature (CCT)	6000K (WH), (3000K (WW) - on request)
Working Temperature	0°c to + 55°c
Luminaire Data
Dimension	Ø:215mm, H:115mm	Ø:305mm, H:115mm	Ø:350mm, H:115mm	Ø:380mm, H:115mm
Rated Life	50000 Hours
IP Rating	IP65
Luminaire Body & Finish	Die Cast Aluminium Body + Tempered PC cover with integrated Lens
